Over the past days, I got back to using the vector feature in Db2 for geographic search. What would happen, so I asked myself, when instead of just latitute and longitude I would use population as a third dimension? How would the similarity search turn out? The experiments proofed to be quite interesting. And it turned the focus on the aspect that the way embeddings are generated, turning objects into vector data, has a significant impact on result quality and usefulness.
Not all cities are equal or similar

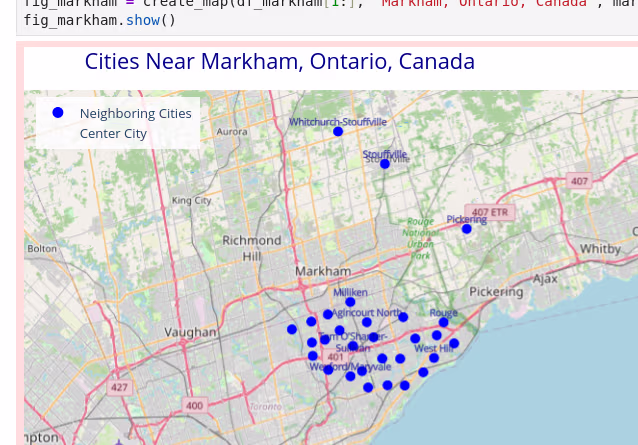

The screenshot above shows Markham, Ontaria, Canada and its surrounding cities as found by a basic similarity search in Db2. The vector consists of the latitude and longitude. All neighbors, regardless of city size, are returned. Here is the same query with the result shown for Munich in Germany:
Munich is significantly larger than its direct neighbors, both in area and population size. So, could we add population as third dimension to the vector and use VECTOR_DISTANCE to find cities with a similar population as neighbors to Munich?
Naive approach
I started my experiments with the naive approach. I made up the vector of latitude, longitude, population. Later, I used 1/10 of the population, but the result did not change. Maybe (un-)suprising, using vector distance to find similar cities to Munich, ordered by distance, returned the following:
NAME COUNTRY POPULATION DISTANCE
------------------------------------------------------------ ------------------------------ ----------- ------------------------
Munich Germany 2606021 +0.00000000000000E+000
Gulou China 2606000 +1.09974954638774E+002
Attadappa India 2615266 +9.26908497906217E+002
Birmingham United Kingdom 2590363 +1.56606401538943E+003
Valencia Venezuela 2585202 +2.08386580708759E+003
Damascus Syria 2584771 +2.12519420984858E+003
Chattogram Bangladesh 2581643 +2.43945711888750E+003
Zibo China 2631647 +2.56423677079286E+003
Huai’an China 2632788 +2.67819961677703E+003
Weifang China 2636154 +3.01494188943090E+003
Longyan China 2640000 +3.39971378910805E+003
Baotou China 2650364 +4.43509760476645E+003
Brazzaville Congo (Brazzaville) 2557100 +4.89228206759222E+003
Yangjiang China 2555600 +5.04306815654393E+003
Chaozhou China 2656600 +5.05914994030683E+003
Maracaibo Venezuela 2658355 +5.23379586785489E+003
Sanaa Yemen 2545000 +6.10217534491475E+003
Shanwei China 2672819 +6.67985465432196E+003
Gāzipura Bangladesh 2674697 +6.86749503505122E+003
Barmhān Kalān India 2537000 +6.90233374714442E+003
20 record(s) selected.
With latitude and longitude having rather small values compared to population, there is an overemphasis on the latter (“bias towards population equality”?). Results are close to the actual population of Munich, but no longer are geographically close.
Would we need to transform (or encode) population before creating the vectors? Let’s give it a try…
Population control, sort of
In my next steps, I first applied square root (SQRT) to the population data. Later, I utilized the natural logarithm (LN).
Below are the returned cities for SQRT(). They are geographically closer to Munich, but still “all over the world”. The number of residents is still close to Munich’s population:
NAME COUNTRY POPULATION DISTANCE
------------------------------------------------------------ ------------------------------ ----------- ------------------------
Munich Germany 2606021 +0.00000000000000E+000
Birmingham United Kingdom 2590363 +1.49696789337801E+001
Damascus Syria 2584771 +2.94775581209598E+001
Hamburg Germany 2496600 +3.47149959809833E+001
Rome Italy 2748109 +4.38807439818582E+001
Sanaa Yemen 2545000 +5.00138998365395E+001
Brazzaville Congo (Brazzaville) 2557100 +5.46955119796239E+001
Stuttgart Germany 2787724 +5.53858301721772E+001
Bucharest Romania 2412530 +6.28987131188135E+001
Beirut Lebanon 2421354 +6.45616562868369E+001
Mecca Saudi Arabia 2427924 +6.82881424663490E+001
Yaoundé Cameroon 2440462 +6.83840306415624E+001
Barmhān Kalān India 2537000 +7.12061847735144E+001
Omdurman Sudan 2805396 +7.18584713163960E+001
Attadappa India 2615266 +7.34271652308136E+001
Algiers Algeria 2364230 +7.80185284132648E+001
Mirzāpur India 2496970 +8.20615487236226E+001
Chattogram Bangladesh 2581643 +8.46422764020678E+001
Gāzipura Bangladesh 2674697 +8.51213363304276E+001
Valencia Venezuela 2585202 +8.83993711346483E+001
20 record(s) selected.

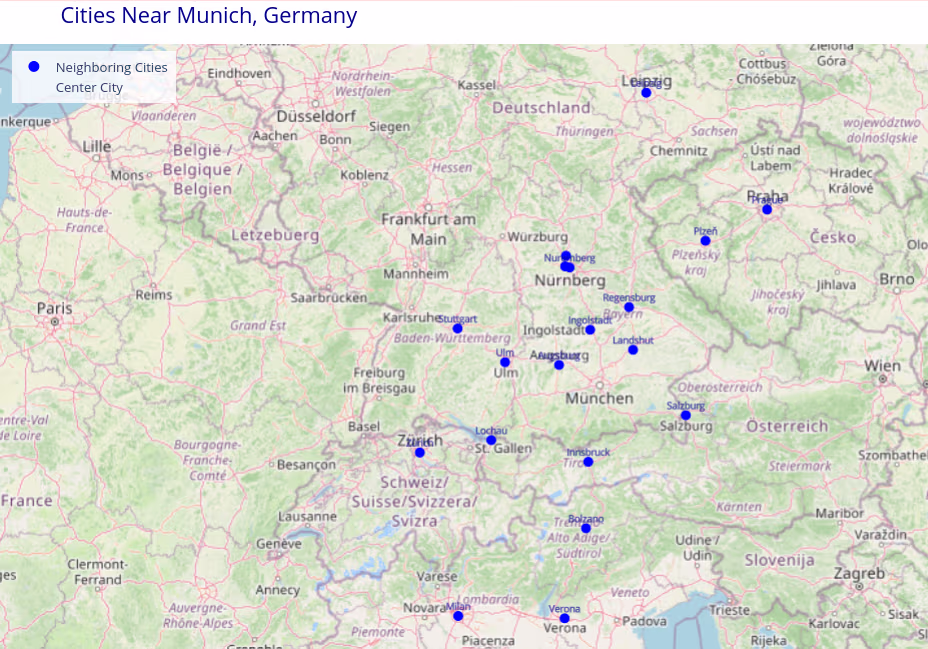

Now, looking at the results when LN() is used instead, all returned cities are in Germany and “neighboring” countries. The population, however, deviates much more, but it still returns large cities only.
NAME COUNTRY POPULATION DISTANCE
------------------------------------------------------------ ------------------------------ ----------- ------------------------
Munich Germany 2606021 +0.00000000000000E+000
Nuremberg Germany 526091 +2.13090380450457E+000
Augsburg Germany 303150 +2.26725912680422E+000
Stuttgart Germany 2787724 +2.47995256588007E+000
Regensburg Germany 159465 +2.97261354556007E+000
Ingolstadt Germany 142308 +2.97790711645387E+000
Innsbruck Austria 130585 +3.12248362476045E+000
Salzburg Austria 155021 +3.19978164226177E+000
Lochau Austria 200000 +3.21042901778803E+000
Fürth Germany 132032 +3.31555761161626E+000
Ulm Germany 129942 +3.40490381459675E+000
Erlangen Germany 117806 +3.46274565636570E+000
Prague Czechia 1384732 +3.50775200123016E+000
Plzeň Czechia 185599 +3.58067411048600E+000
Zürich Switzerland 448664 +3.58915440458200E+000
Leipzig Germany 619879 +3.59975830782204E+000
Bolzano Italy 106107 +3.60324391785282E+000
Verona Italy 255588 +3.60760002624422E+000
Landshut Germany 75272 +3.61339028640625E+000
Milan Italy 1354196 +3.63989821744654E+000
20 record(s) selected.
I tried to adjust query results by applying the predicate “country=‘Germany’” in the WHERE clause. On first sight, the result looks ok. However, it ignores the fact that Munich is close to countries like Austria and Czechia and both have qualifying cities.
NAME COUNTRY POPULATION DISTANCE
------------------------------------------------------------ ------------------------------ ----------- ------------------------
Munich Germany 2606021 +0.00000000000000E+000
Nuremberg Germany 526091 +2.13090380450457E+000
Augsburg Germany 303150 +2.26725912680422E+000
Stuttgart Germany 2787724 +2.47995256588007E+000
Regensburg Germany 159465 +2.97261354556007E+000
Ingolstadt Germany 142308 +2.97790711645387E+000
Fürth Germany 132032 +3.31555761161626E+000
Ulm Germany 129942 +3.40490381459675E+000
Erlangen Germany 117806 +3.46274565636570E+000
Leipzig Germany 619879 +3.59975830782204E+000
Landshut Germany 75272 +3.61339028640625E+000
Frankfurt Germany 775790 +3.70535022195604E+000
Rosenheim Germany 65192 +3.74132320060203E+000
Würzburg Germany 128246 +3.80443740624146E+000
Chemnitz Germany 250681 +3.81440066178152E+000
Kempten Germany 70056 +3.85022296238472E+000
Reutlingen Germany 118528 +3.90280944423094E+000
Karlsruhe Germany 309964 +3.91768644328843E+000
Dresden Germany 566222 +3.93704990214691E+000
Heilbronn Germany 130093 +3.94597627841490E+000
20 record(s) selected.
The power of SQL? Use BETWEEN with percentage
Instead of encoding population in the vector, maybe it could be considered in a more traditional predicate? How could I express the search criteria to only consider neighboring cities of similar size? One way could be to apply the BETWEEN predicate with a percentage range for the population. Here is the SQL statement for a range within +/- 20% the size of Munich’s population.
select name,
country,
population,
vector_distance((select coord from cities where name='Munich'),
coord,
euclidean) as distance
from cities
where (select population from cities where name='Munich') between population*0.8 and population*1.2
order by distance
limit 20;
The query returns the following, maybe surprising result:
NAME COUNTRY POPULATION DISTANCE
------------------------------------------------------------ ------------------------------ ----------- ------------------------
Munich Germany 2606021 +0.00000000000000E+000
Stuttgart Germany 2787724 +2.47903647478988E+000
Vienna Austria 2223236 +4.79802206189633E+000
Hamburg Germany 2496600 +5.63699956816997E+000
Rome Italy 2748109 +6.31004215500355E+000
Birmingham United Kingdom 2590363 +1.41598127691243E+001
Algiers Algeria 2364230 +1.42167799104080E+001
Bucharest Romania 2412530 +1.49938656038498E+001
Athens Greece 3059764 +1.58362674261946E+001
İzmir Turkey 2965900 +1.83493615311709E+001
Kyiv Ukraine 2952301 +1.90888905608648E+001
Bursa Turkey 3101833 +1.92001279810137E+001
Konya Turkey 2320241 +2.32947708743434E+001
Casablanca Morocco 3215935 +2.40898978805504E+001
Beirut Lebanon 2421354 +2.78467879825984E+001
Damascus Syria 2584771 +2.87302901819551E+001
Ouagadougou Burkina Faso 3063271 +3.80931722447174E+001
Omdurman Sudan 2805396 +3.85949018415254E+001
Mecca Saudi Arabia 2427924 +3.88820763462854E+001
Baku Azerbaijan 2300500 +3.90413674447026E+001
20 record(s) selected.
Conclusions
My experiments clearly show that an approach of “just encode, then query” do not work well (Hello, vibe coders!). When designing the vector or choosing an embedding model, it requires careful selection and quality control. What also became clear is that storing vectors and traditional relational data side by side is quite powerful. By combining similarity search with regular SQL predicates on other columns, I was able to built more tailored queries and to tune results.
If you have feedback, suggestions, or questions about this post, please reach out to me on Mastodon (@data_henrik@mastodon.social) or LinkedIn.
